Cold Room Solutions
Here’s where you get custom cold room solutions that rightly fit your needs!
With us you find cold-room panels, doors, shelves, and refrigeration units, alongside their installation & implementation services. So, why wait to describe your fits & get quotes?
Contact us

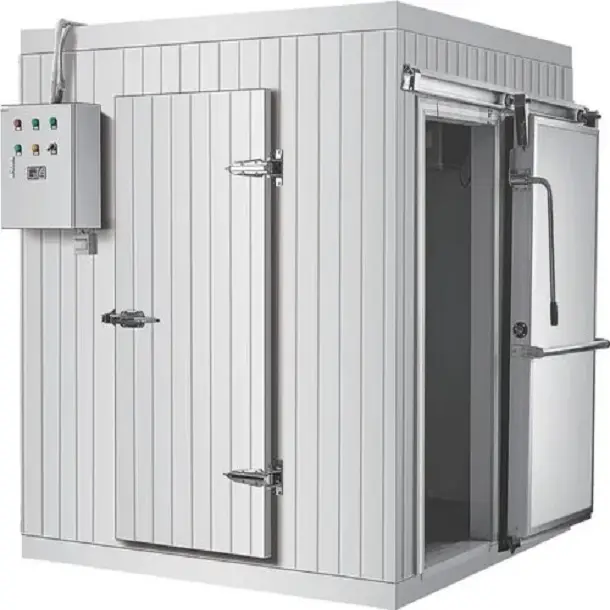

Walk in Freezer Freezer Room
Frozen foods must be stored in the freezer room so that they stay fine and usable for a longer duration of time. Normally -18°C is the preferred temperature of these rooms. It is known as the Freezer Room or Walk-in freezer.
- Temperature : -18°C / -20°C
- Suitability : Frozen Foods, Meat, Chicken, Fish, Ice Cream etc.
- Dimensions : Custom sizes according to customer requests.
- Panels : PUR or PIR
Walk in Chiller
Chiller Room
In order for the products to preserve their freshness for a long time, they should be stored in a chiller room. The temperature of chiller rooms is usually + 2°C. It is called Walk-in Chiller or Chiller Room.
- Temperature : +2°C
- Suitability : Fruits, Vegetables, Legumes, Milk, Dairy, Fruit Juices etc.
- Dimensions : Custom sizes according to customer requests.
- Panels : PUR or PIR

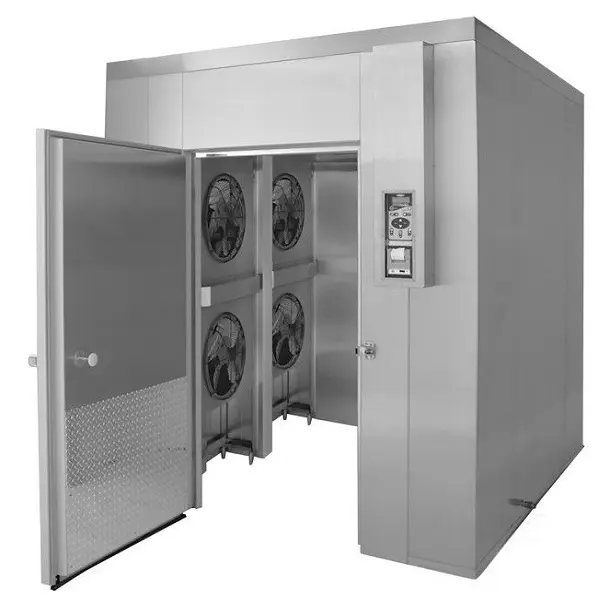

Walk in Blast Freezer Blast Freezer Room
It is used for shocking to preserve foods for a longer period of time. The temperature of the blast freezer rooms is generally -40°C. It is especially used for perishable foods. Meat, chicken, fish etc. It is called Walk-in Blast Freezer or Blast Freezer Room.
- Temperature : -40°C
- Suitability : Meat, Chicken, Fish etc.
- Dimensions : Custom sizes according to customer requests.
- Panels : PUR or PIR
Spare Parts / Accessories

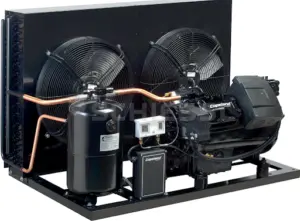

Cold Room Refrigeration Units
These are manufactured in compliance with cold room and freezer room conditions. It fulfills the European Union Standards and is built with CE Marking.
- Copland or Bitzer
- Environmentally Friendly
- Certified Products
- Energy Saving
- Does not contain carcinogenic material
- Can be used in health and food sector

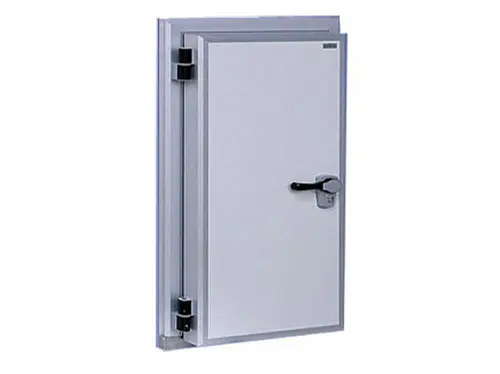

Cold Room Doors
Selecting the type of door for the cold rooms is a crucial task. Here are some suggestions for the type of doors, which are preferred by customers and according to the features of the room.
Types of Doors:
- Service Doors
- Cold Room Doors with sliding track
- Cold Room Doors with Hinges
- Monorail Doors
- Organized Atmosphere Doors
Our products are manufactured in accordance with cold room (Walk-in chiller) and freezer room (walk-in freezer) conditions.

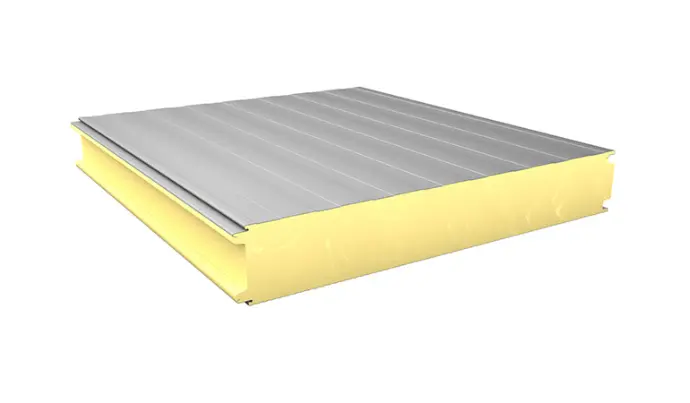

Cold Room Panels
Cold room panels are made of 38 -42 kg/m³ PU or PIR . They have also a B2 non-flammable standard under TS EN 13501-1. Panels are connected in a puzzle form. Afterwards they can also be demounted. Wall and ceiling cold room panels are produced in different thicknesses (60 mm, 80 mm, 100 mm, 120 mm, 150 mm, 180 mm, 200 mm). They are 100-120 cm wide and can be manufactured according to your instructions optional long. With the purpose of use, wall and ceiling panel steel sheets can be manufactured with Cr-Ni, PVC, Galvanize , 304 Stainless steel and Polyester. Cold room panels are smooth, hygienic and are easily cleanable. As they are hygienic, they are commonly used in hospitals, in grocery storehouses and in medicament branches. Panels prevent the heat loss with its individual design and accessories.
* Optionally, it can be produced as camlock cold room panel.

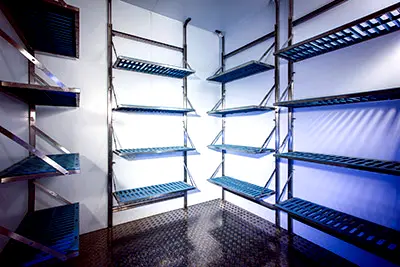

Cold Room Shelves
Air freshening capacity over 85%,
Cooling, air flow, dust, bacteria, heat elimination, drying, all these tasks are performed easily. It is the most appropriate mechanism for cold rooms.
All Products are Visible
You can see the products and items kept Inside very easily. Because the light in the surrounding area is not affected, light is quite luminous.

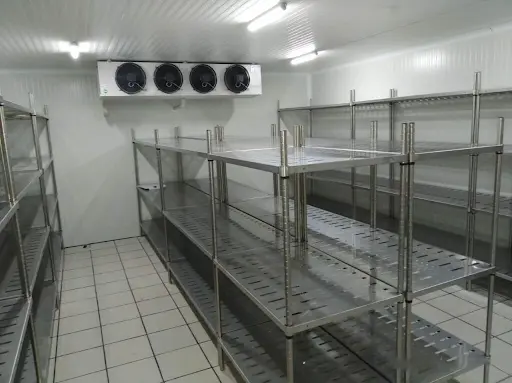

Stainless Steel
Is readily available for 304 food sector or 316 medical or pharma sector.
General Cold Room Specifications
- Insulation: CFC Free, Rigid Injected Polyurethane /PIR Foam.
- Density: 42 kg/m3. • Thickness: 80mm (+0 temp Rooms), 80mm (-0 temp Rooms)
- Cladding: 06 mm P.V.C coating, 0.5 mm GI or 304 SS anti-bacterial
- Fire Rating: Meets redundancy requirements based on FM approval 4880
- Construction: Panels are joined together by two systems Male-Female , Cam-Lock or both
- Flooring: Panel Flooring: 80mm insulated panels with 1.5mm Checkered Aluminum on top Floorless: 50mm insulation foam with 100mm concrete slab on the top or plywood
- Refrigerant: R-404
- Electrical Rating: 380v/3ph (unless otherwise specified)
- Lighting: Heavy Duty, Water Proof, Low Energy, Florescent Lighting T5.
- Installation: Panels: Pre-Cut as per site dimensions and client requirements. Condensing Units and Evaporators: Pre-Wired to suit site conditions.
Specifications: Stainless Steel.
